Nvidia GeForce RTX 3080 Ti review

Flagship performance - at a price.

The RTX 3080 Ti is here, and I know what you're thinking - why even release an RTX 3080 Ti if the 3080 remains so hard to find? The official answer from Nvidia is binning: chips come off the production line with different levels of quality, and get sorted into different 'bins' based on the performance that each particular bit of silicon is capable of achieving. For the GA102 GPU that lies at the heart of the 3080, 3080 Ti and 3090, the lower tier parts turn into 3080s, better parts into the 3080 Ti and the best of all into the 3090 - and they've been holding onto these middle-tier parts to deploy the long-planned 3080 Ti for some time now.

Whether this translates into a flood of new high-end graphics cards remains to be seen, but in the here and now let's take a look at how Nvidia's new ($1200/£1050) flagship performs.

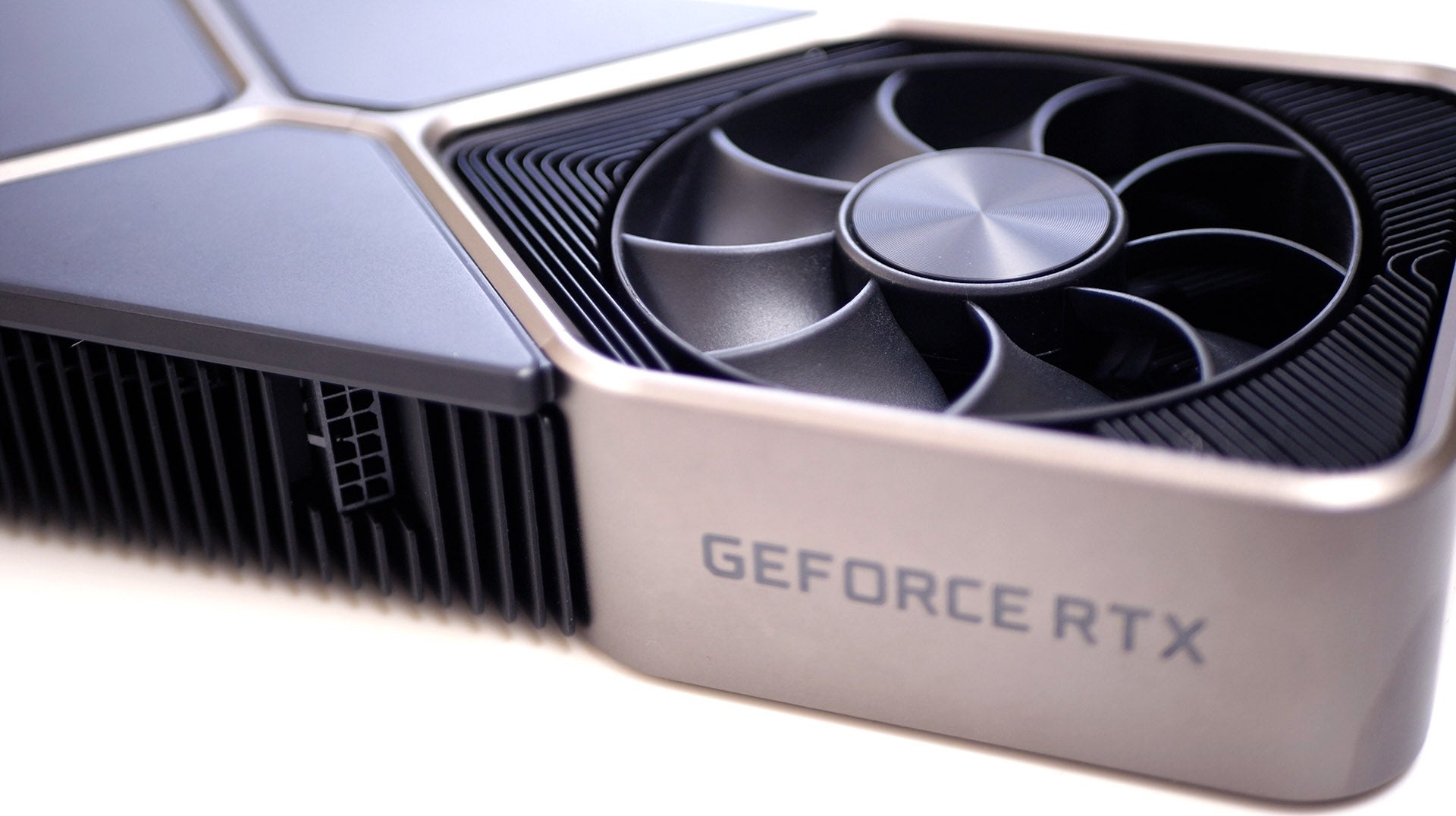

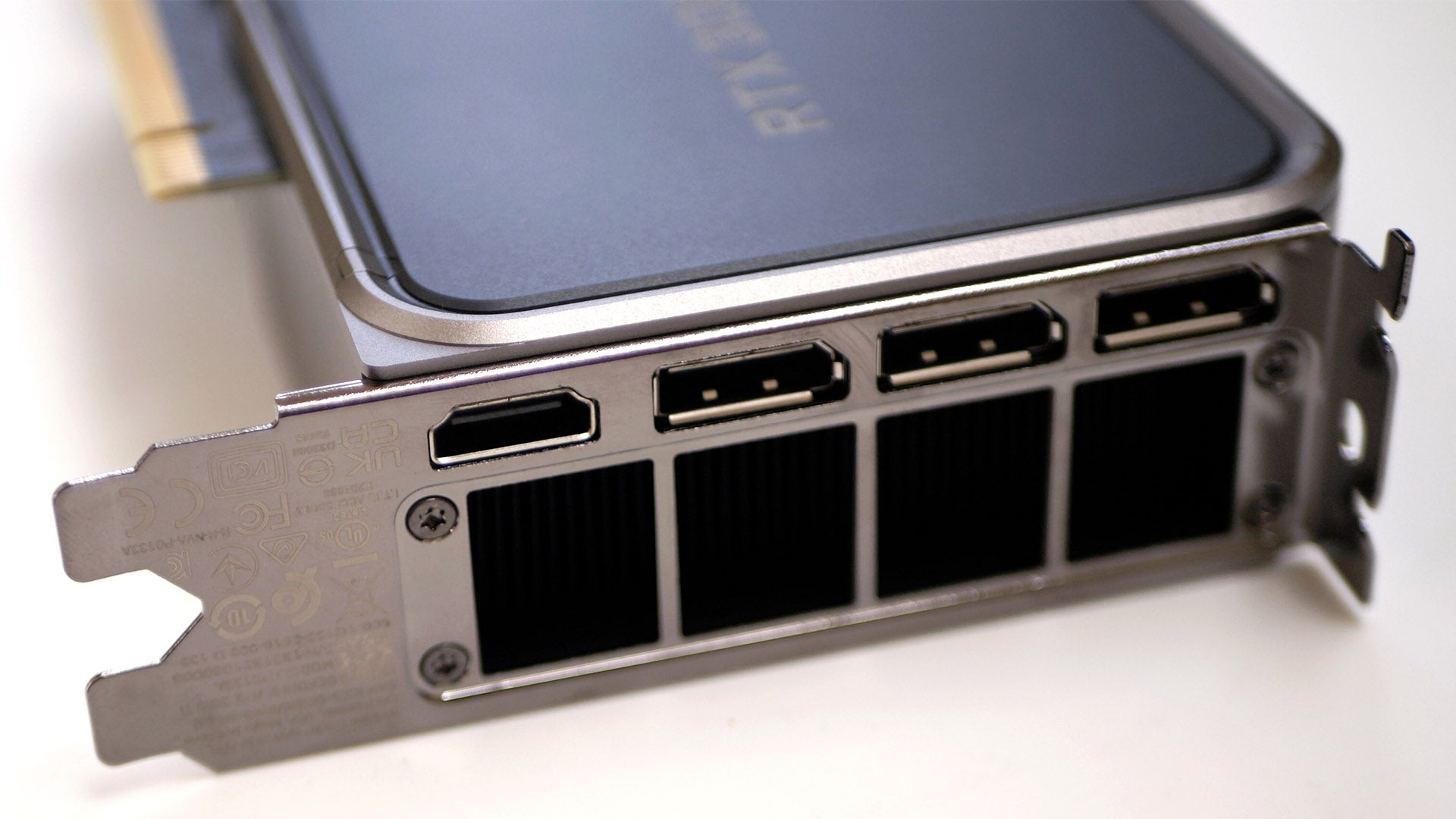

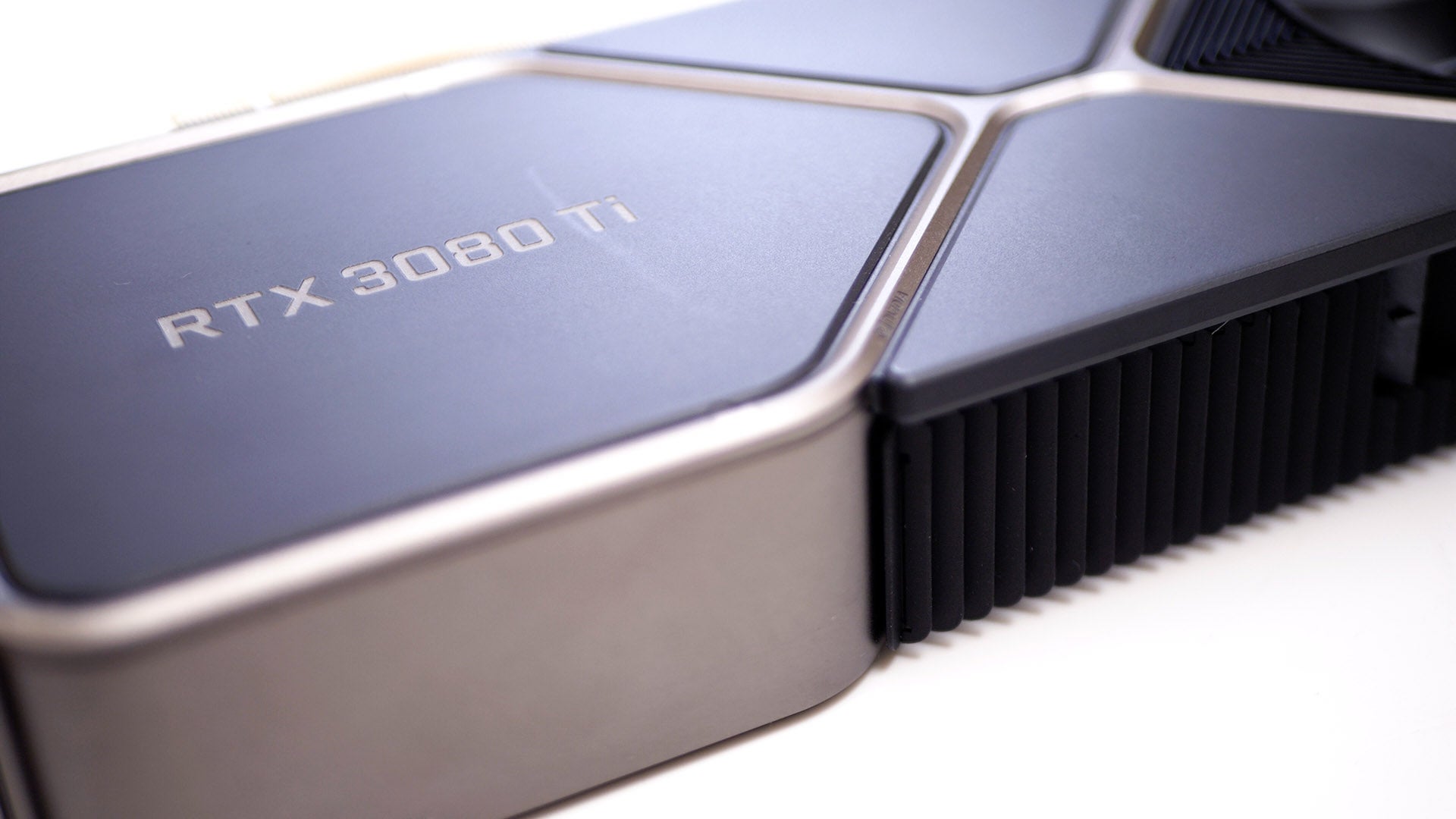

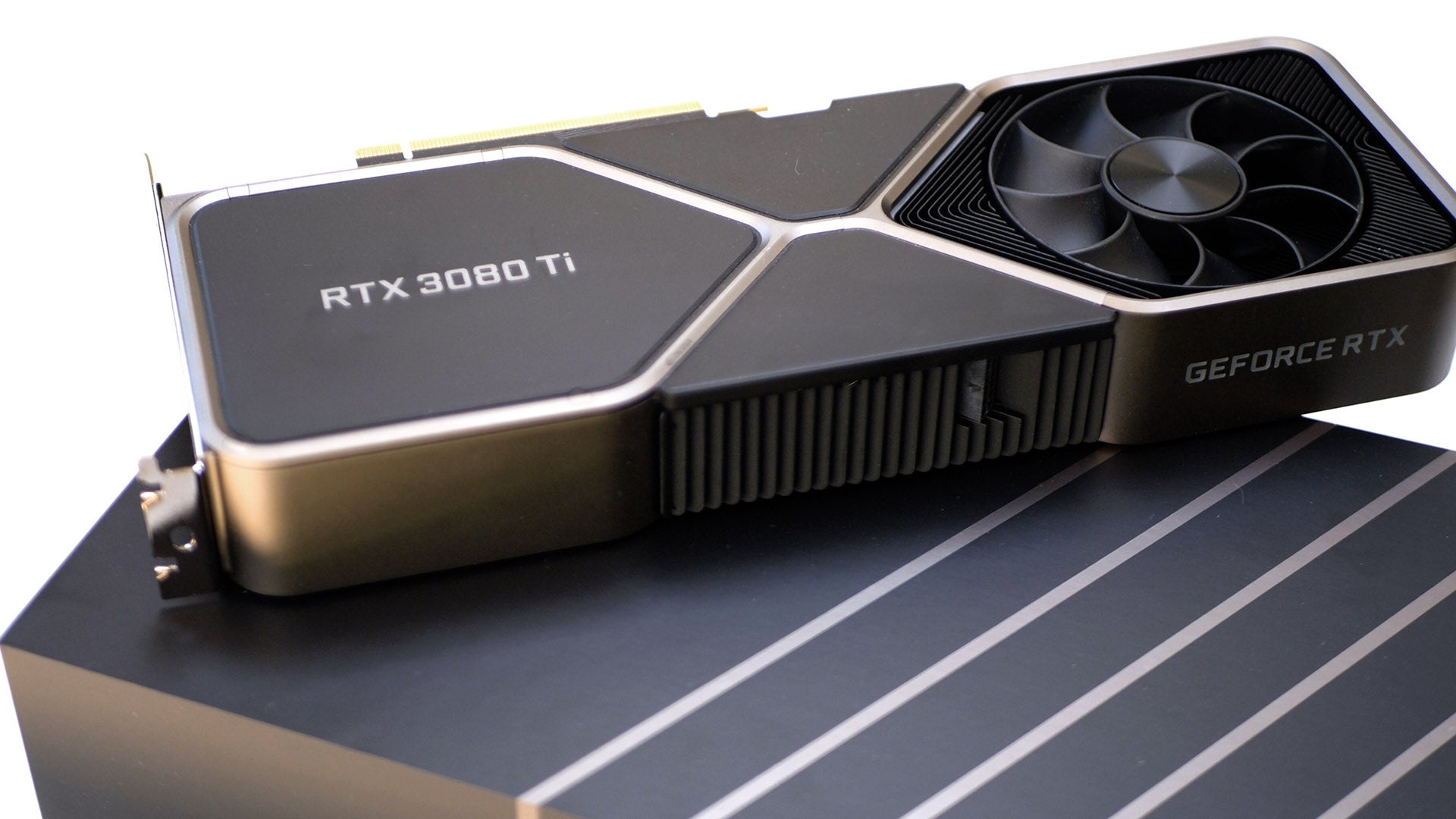

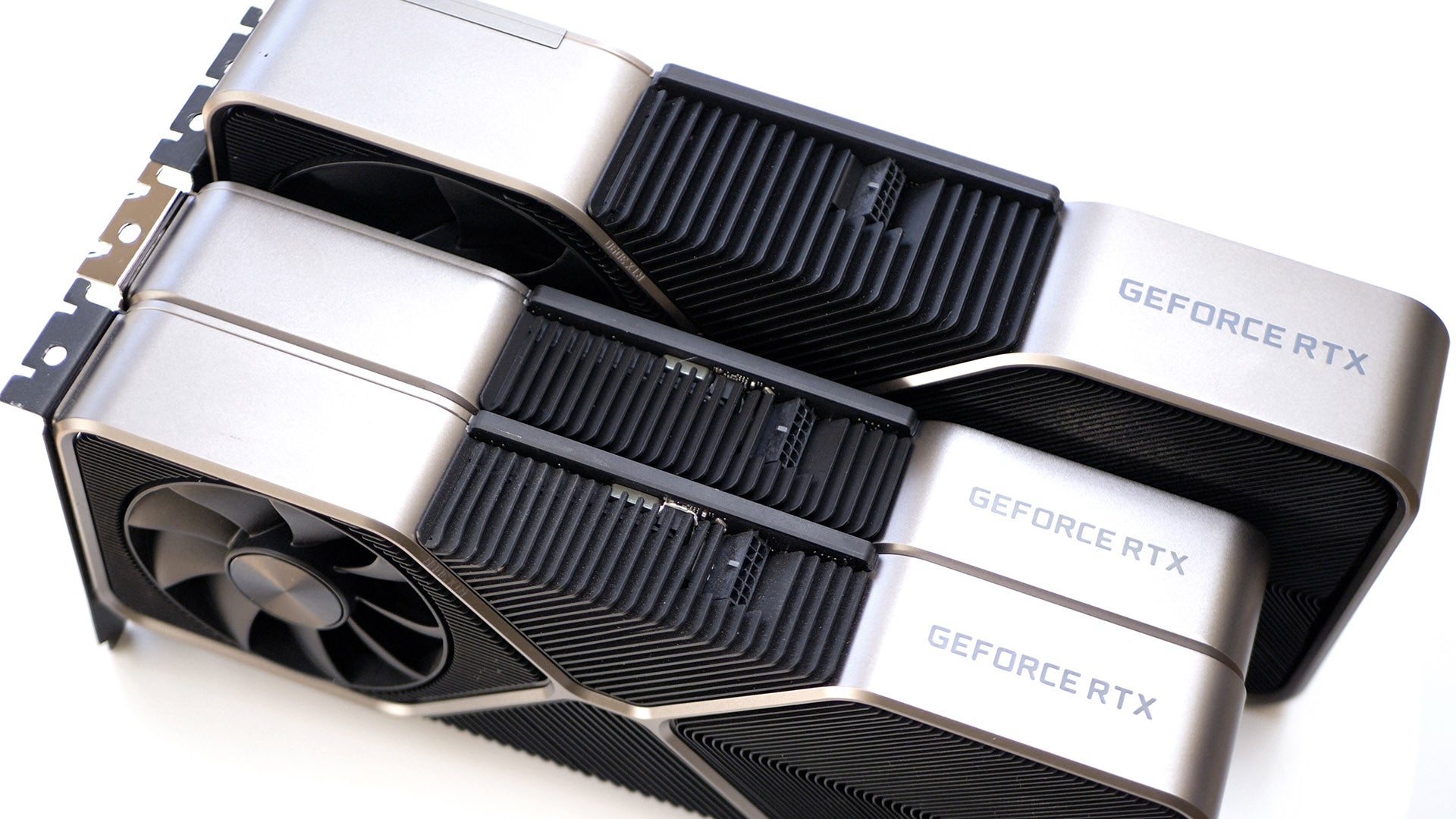

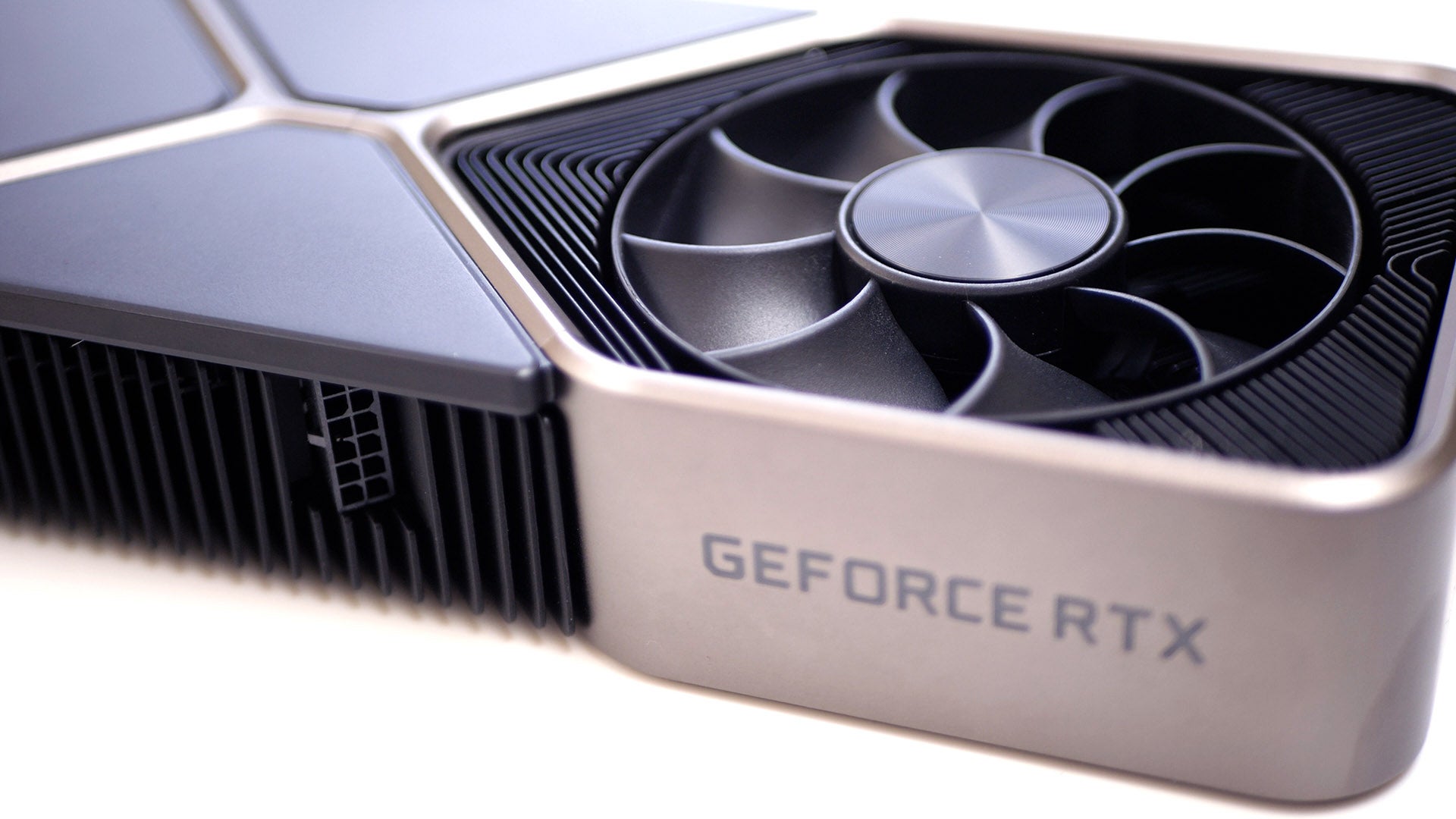

From the outside, the Nvidia GeForce 3080 Ti Founders Edition we're testing looks nigh-identical to the original 3080 FE - same two-slot cooler, same 12-pin power input, same complement of DisplayPort and HDMI 2.1 ports and even the same colour - there's just a sneaky 'Ti' suffix on the original RTX 3080 wordmark. Beyond that, the only difference is a traditional silver backplate vs the standard black on RTX 3080 and 3090. This makes the card feel more in line with an RTX 3080 than a unique model in its own right, but all of the really interesting stuff is found under the hood - as the specs place this hybrid card far closer to the full-fat RTX 3090 than the 3080 it outwardly resembles.

Doing the quick maths, the RTX 3080 Ti has nearly 98 percent of the shading hardware of the 3090, compared to the 83 percent possessed by the vanilla 3080. The Ti also possesses the full 384-bit memory interface of the so-called 'BFGPU', rather than the restrained 320-bit equivalent you'll see on the 3080. Memory bandwidth is also boosted, with a full 20 percent advantage for the Ti over the original 3080.

The only big cutback? Total VRAM - you're getting 12GB of fancy GDDR6X, two gigabytes more than the 3080 but still half that of the RTX 3090 24GB. That means AMD's 16GB BIG NAVI cards continue their VRAM dominion over the new Nvidia flagship, but proud GTX 1080 Ti owners that don't want to see a downgrade from their 11GB allocation at least have a new option to consider. (Realistically, a 384-bit bus only allows for 12GB or 24GB, depending on whether you use 1GB or 2GB NAND chips, so 16GB was never an option for the 3080 Ti anyway.)

RTX 3090 RTX 3080 Ti RTX 3080 2080 Ti RTX 2080 1080 Ti
GPU GA102 GA102 GA102 TU102 TU104 GP102
CUDA cores 10496 10240 8704 4352 2944 3584
Memory Bus 384-bit 384-bit 320-bit 352-bit 256-bit 352-bit
Bandwidth 936GB/s 912GB/s 760GB/s 616GB/s 448GB/s 484GB/s
Boost Clock 1695MHz 1665MHz 1710MHz 1545MHz 1800MHz 1582MHz
TDP 350W 350W 320W 250W 225W 250W
Die Size 628mm2 628mm2 628mm2 754mm2 545mm2 471mm2
Transistors 28B 28B 28B 18.6B 13.6B 11.8B

To offset the relatively high SM count and higher power budget in a smaller chassis, the 3080 Ti operates at a slightly lower boost frequency than either the 3080 or the 3090. Nvidia's official spec places this at 1665MHz, but in practice we saw higher figures thanks to an opportunistic algorithm that will continue to crank up frequency while power and temperature targets are being met. We spotted up to 1800MHz in Control and up to 1900MHz in Assassins Creed Valhalla - quite high but not quite equalling the other GA102 cards, so Nvidia's guidance at least holds true in relative terms. Despite the lower clocks, the 3080 is rated for the same 350W TDP as the 3090, some 30W beyond the OG 3080, and that means the two-slot 3080-style design will need to run at higher fan speeds than the three-slot 3090. Whether that's noticeable in day to day use could come down to your individual card - we had a look at two samples and one spun up loudly under load - Nvidia is investigating this card as we're assured it's not the norm.

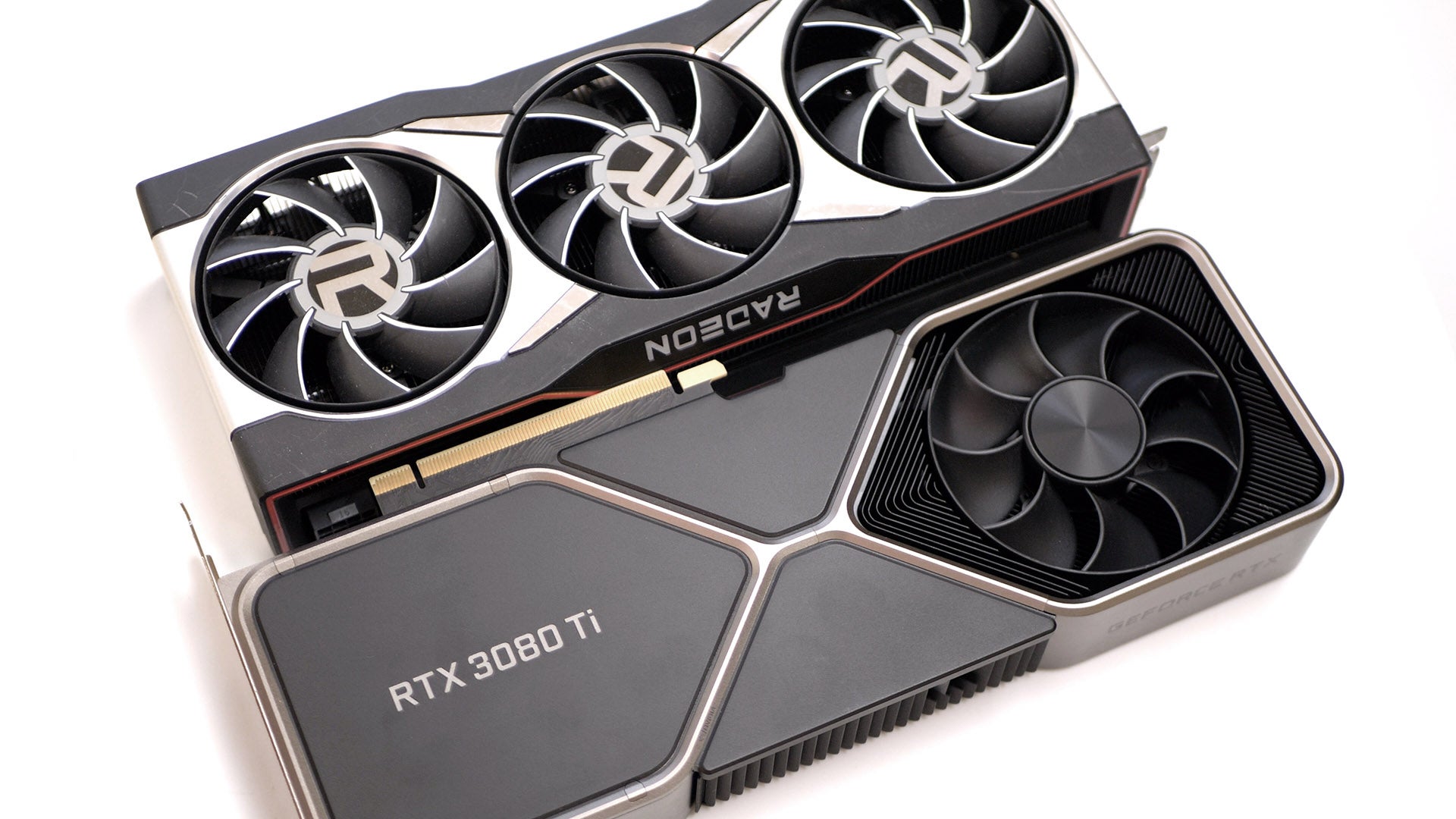

Beyond the spec adjustments, this is an Ampere card through and through, with the usual third-gen Tensor cores, second-gen RT cores and streamer-favourite NVEnc encoders. The only real question that remains is just how this card performs compared to its closest competitors - both from Nvidia and AMD. We'll be testing this Ti fighter against Navi cards big and small, plus past GeForce flagships like the GTX 1080 Ti and RTX 2080 Ti.

Our test set-up remains unchanged from our past GPU reviews, but here's a quick summary if you're just tuning in now. We settled on a Core i9 10900K system as this provided the best out-and-out gaming performance when current-gen GPUs launched back in 2020, backed with an Asus Maximus 12 Extreme Z490 motherboard, dual-channel G.Skill Trident-Z Royal DDR4-3600 CL16 memory and a 2TB Samsung 970 Evo Plus NVMe drive from Box. To keep our CPU performance constant, we've locked it to 5GHz on all cores and kept it cool with a 240mm Eisbaer Aurora liquid cooler.

Now that you're familiar with our test bed and have a good overview of the cards themselves, let's see if this RTX 3080 Ti screams.

Nvidia GeForce RTX 3080 Ti analysis
